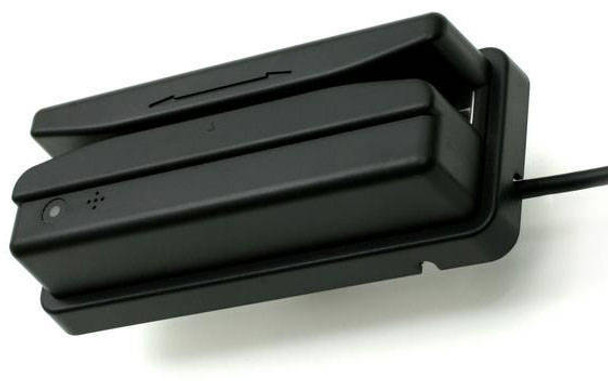

MS146, Lector de Banda Magnetica (MSR) Interfaz RS-232 Con Luz Visible, Requiere Adaptador de Corriente.
Detalles Tecnicos Unitech MS146
| OPTICAL |
| |
| Light source |
Visible light: 660 nm LED (MS146)
Infrared: 930 nm LED (MS146I) |
| Sensor |
Photo diode |
| Resolution |
6 mils (0.15mm) minimum |
| Depth of field |
2 mm |
| Scan rate |
2.0" (50 mm) to 30" (750 mm)/second |
| Print contrast ratio |
0.6 |
|
|
|
| INTERFACE |
| |
| Connector |
PC XT / AT / PS/2
Macintosh
RS232
TTL (undecoded) |
| Operation modes |
Continuous |
| Signal |
Open collector, black = high level (TTL) |
|
|
|
| MECHANICAL |
| |
| Dimensions |
3.75 Inches (95mm)
1.375 Inches (35mm)
1.875 Inches (30mm) |
| Weight |
6.7 oz. (190g) with cable |
| Case material |
ABS plastic |
|
|
|
| ELECTRICAL |
| |
| Operating current |
Undecoded: 35 mA
Decoded: 70mA |
| Cable |
6.0 ft. (1.83m) |
|
|
|
| DECODER |
| |
| Symbologies |
China Postal Code
Codabar
Code 11
Code 32
Code 39 (full ASCII)
Code 39 (Standard)
Code 93
Code 128
Delta Code
EAN-8 with add-on code
EAN-13 with add-on code
EAN 128
Interleaved 2 of 5
ISBN / Bookland EAN
ISBT 128
Italian Pharmacy
Label Code IV
Label Code V
MSI / Plessey
Standard 2 of 5
Toshiba Code
UPC-A with add-on code
UPC-E with add-on code |
| Data Editing |
Almost unlimited |
| Configuration |
Scanner Configuration Manager software
Scanned-in bar codes |
|
|
|
| ENVIRONMENTAL |
| |
| Operating temperature |
32 to 122°F (0 to 50°C) |
| Storage temperature |
-4 to 140°F (-20 to 60°C) |
| Humidity |
0% to 95% RH non-condensing |
| Mechanical shock |
5 ft. (1.5 m) drop to concrete |
| Environmental sealing |
IP54 |
| Warranty |
2 years |
|
|
|
